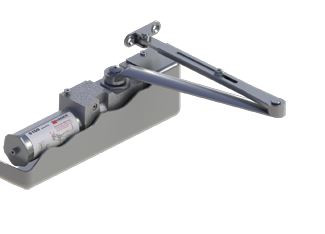

Hager Surface Door Closer Grade 1 Heavy Duty - 5100-MLT

Product Description

Hager Surface Door Closer Grade 1 Heavy Duty

Ideal for schools, hospitals, and other high-use environments

To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.

Cross reference to the LCN 4040XP

MATERIAL: Cast Iron
The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)

SIZE:
1-6 adjustable

COVER:
Full plastic cover - Standard
SPRINGS:
One piece seamless steel spring tube
Double heat treated steel, tempered springs
Precision machined, heat treated steel piston
VALVES:
Adjustable latching and sweep speed valves
Adjustable backcheck valve - Standard
Delayed action valve - Optional
Staked valves - Standard

Parallel Arm Bracket #5909

DOOR THICKNESS:
1-3/4" (44 mm) - Standard
1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional
