Ives 7200 Series Pivots Fire Rated 3/4" Offset Bottom Pivot 500 Pound Rating - 7215F BTM

Product Description

For more than 120 years IVES has produced a full line of premium quality building hardware and accessories that delivers application flexibility and superior value. The expansive portfolio includes hinges, pivots, flush bolts, strikes, door trim, pulls, protection plates, lock guards and many other hardware accessories.

Hinges & Pivots

Ives offers a wide range of Hinges and Pivots Multiple latches, catches and bolts to assure a door will stay closed when it is not in use.

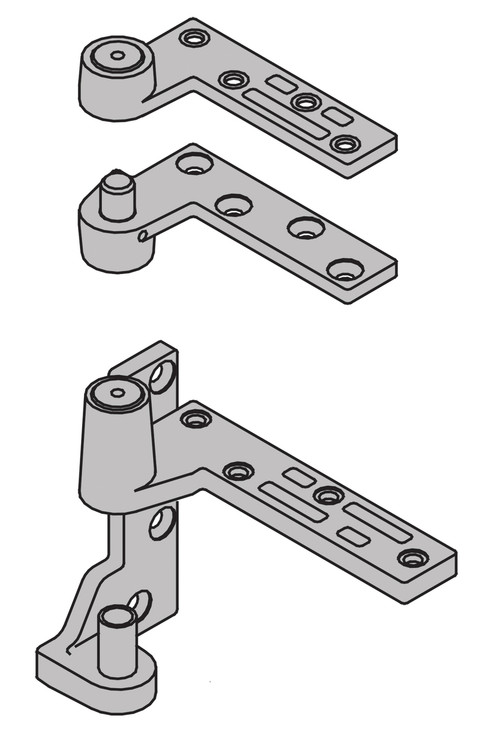

7215/7215F 3/4" Offset Pivot

Handed
Top, header mount
Bottom, jamb mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 500 pounds
Vertical adjustment range 3/16", with positive locking
WP - optional weather resistant bottom pivot is modified for improved corrosion resistance. Available in US26D (626) or US32D (630) only.

Hinges

Selections of the Proper Weight and Bearing Type
Standard Weight - Plain Bearing
Standard Weight - Ball Bearing, Concealed Bearing
Heavy Weight - Ball Bearing, Concealed Bearing

Considerations to Determine Weight and Bearing Type

Weight of Door
Frequency of use
Frame
Door Hardware

Always use ball bearing or concealed bearing hinges for doors with door closers and in all fire rated openings. Heavy weight doors and high frequency doors should use heavy weight ball bearing or concealed bearing hinges.

Guidelines for Hinge Material

Interior door or non-corrosive area use: Plated or painted Steel
Interior labeled door use: Plated or Painted Steel, Stainless Steel
Interior door in corrosive area use: Stainless Steel , Brass, Bronze
Exterior doors use: Stainless Steel, Brass, Bronze

NOTE: Standard pin material are: Brass Hinge – Steel Pin, Stainless Steel Hinge – Stainless Steel Pin, Steel Hinge – Steel Pin

Considerations to Determine Hinge Size

Door Width
Door Thickness
Weight
Clearance

Pivots
The door rests on the bottom pivot in this application. This reduces the stress on the frame by distributing the weight of the door throughout the floor and structure. By taking advantage of the strength of the structure, this makes a pivot the ideal solution for your heavy doors. Center and pocket pivots also provide an aesthetic option for your opening.

Pivots

Pivots reduce the stress on the frame by distributing the weight of the door throughout the floor and structure. By taking advantage of the strength of the structure, this makes a pivot the ideal solution for your heavy doors. Center and pocket pivots also provide an aesthetic option for your opening.

Ives offers a complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. High strength brass and stainless steel forgings, and castings for rated and non-rated doors combined with precision bearings for smooth operation. Positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.

Designs and finishes

3/4” Offset – The center of the pivot point is offset from the face of the door by ¾”. This allows the door to swing almost 180 degrees if flush trim is on the door
1-1/2” Offset - The center of the pivot point is offset from the face of the door by 1 ½”. This allows the door to swing almost 180 degrees if you have a lever handle or pull on the door
Intermediate – these are middle hinge style pivots for the middle of the door and are used in conjunction with a top and bottom pivot. This increases the door load capacity or fire rating requirements. NFPA 80, Section 3-3.8 requires intermediate pivot(s) on some fire door applications, consult catalog and factory for more information
Center Hung – The pivot is centered within the door thickness of the door and installed directly above and below the door so there is not offset and thus center hung

Finishes:

600, USP – Primed for painting, Steel
605, US3 – Bright Brass, Brass
606, US4 – Satin Brass, Brass
612, US10 – Satin Bronze, Bronze
613, US10B – Oil Rubbed Dark Bronze, Bronze
625, US26 – Bright Chrome, Brass
626, US26D – Satin Chrome, Brass
706, SP4 -
691, SP10 – Light Bronze Painted Brass
689, SP28 – Aluminum Painted Brass
695, SP313 – Dark Bronze Painted Brass
622, SPBLK – Black Painted Brass

Base Material
Hinge Base material is key to preserving the life of a hinge

Base Material	Ferrorus/Non-Ferrous	Application	For Use on Fire-Rated Doors
Steel	Ferrous/Susceptible to Rust	Interior Doors	Yes
Brass	Non-Ferrous/Rust Proof	Interior Doors in Corrosive Areas & Exterior Doors	No
Stainless Steel	Ferrous/Highly Resistant to Rust	Interior Doors in Corrosive Areas & Exterior Doors	Yes

Special Pin Applications

NRP- Non-Removable Pin
TW4 - Four Wire
TW8 - Eight Wire
MON - Monitor
TW4M - Four Wire with Monitor
TW8M - Eight Wire with Monitor

Guidelines for Frequency of Door Usage

Build Type	Daily Usage	Hinge Type
High Frequency/Heavy Weight Door
Large Department Store Entrance	5,000	Heavy Weight
Hospital Corridor and Surgical Doors	5,000	Heavy Weight
Large Office Building Entrance	4,000	Heavy Weight
School Entrance	1,250	Heavy Weight
School Toilet Door	1,250	Heavy Weight
Office Stairwell	500	Heavy Weight
Office Building Toilet Door	400	Heavy Weight
Medium Frequency/Medium Weight Door
School Corridor Door	100	Standard Weight
Hospital Consultation Rooms	100	Standard Weight
Office Building Corridor Door	80	Standard Weight
Store Toilet Door	60	Standard Weight
Storage Room	50	Standard Weight
Low Frequency/Light Door
Residential Entrance	30	Plain Bearing
Interior Residential	20	Plain Bearing

ANSI/BHMA Grade/Minimum Cycle Requirements
Grade 1: 2,500,000 Heavy Weight Ball & Concealed Bearing
Grade 2: 1,500,000 Standard Weight Ball & Concealed Bearing
Grade 3: 350,000 Light Weight Plain Bearing

Guidelines for Hinge Height

Door Thickness (in.)	Door Width (in.)	Hinge Height (in.)
1 3/8”	Up to 32”	3 1/2"
1 3/8"	32” to 37”	4”
1 3/4"	Up to 36”	4 1/2”
1 3/4"	36” to 48”	5”
1 3/4"	Over 48”	6”
2” - 2 1/2”	Up to 42”	5” heavy weight
2” - 2 1/2”	Over 42”	6” heavy weight

Clearance Requirement

Door Thickness	Clearance Needed	Hinge Open Width
1 3/8	3/4	4
1 3/4	1	4
1 3/4	1 1/2	4 1/2
1 3/4	2	5
1 3/4	3	6
2	1	4 1/2
2	1 1/2	5
2	2 1/2	6
2 1/4	1	5
2 1/4	2	6
2 1/2	3/4	5
2 1/2	1 3/4	6
3	3/4	8
3	2 3/4	8

Guidelines for Number of Hinges

Doors under 7'6" - 3 hinges
Doors over 7'6" - 4 hinges

7200 Series Pivots
Complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance.

High strength brass and stainless steel forgings, and castings for rated and non-rated doors combined with precision bearings for smooth operation. Stainless steel machine screws and wood screws standard. Positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.

Last digit in pivot set number reflects the maximum door weight in hundreds of pound, e.g., 7215 = 500 pounds. For sets designated as “heavy duty”, add 1,000 pounds, e.g., 7237F HD set = 1700 pounds. Pivots for lead lined doors are available, consult factory.

7212 3/4" Offset Pivot

Handed
Top, header mount
Bottom, jamb mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 200 pounds
Vertical adjustment range 3/16", with positive locking

7212V 3/4" Offset Pivot

Handed
Top, jamb mount
Bottom, jamb mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 200 pounds
Vertical adjustment range 3/16", with positive locking

7215/7215F 3/4" Offset Pivot

Handed
Top, header mount
Bottom, jamb mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 500 pounds
Vertical adjustment range 3/16", with positive locking
WP - optional weather resistant bottom pivot is modified for improved corrosion resistance. Available in US26D (626) or US32D (630) only.

7222 3/4" Offset Pivot

Handed
Top, header mount
Bottom, base plate mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 200 pounds
Vertical adjustment range 3/16", with positive locking

7226/7226F 3/4" Offset Pivot

Non-handed
Top, header mount
Bottom, base plate mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 600 pounds
Vertical adjustment range 3/16", with positive locking

7227/7227F 3/4" Offset Pivot

Non-handed
Top, header mount
Bottom, base plate mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 700 pounds
Vertical adjustment range 3/16", with positive locking

7230F 3/4" Offset Pivot - Heavy Duty

Non-Handed
Top, header mount
Bottom, base plate mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 1,000 pounds
Vertical adjustment range 3/16", with positive locking

7237F 3/4" Offset Pivot - Heavy Duty

Non-Handed
Top, header mount
Bottom, mortised cement case mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 1,750 pounds
Vertical adjustment range 3/16", with positive locking

7244F 1 1/2" Offset Pivot - Heavy Duty

Non-Handed
Top, header mount
Bottom, base mount
Use with 1 3/4" minimum door thickness
Maximum door load 400 pounds
Vertical adjustment range 3/16", with positive locking

7245F 1 1/2" Offset Pivot - Heavy Duty

Non-Handed
Top, header mount
Bottom, mortised cement case mount
Use with 1 3/4" minimum door thickness, with 1/8" bevel in 2"
Maximum door load 500 pounds
Vertical adjustment range 3/16", with positive locking

Intermediate Pivots
NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications, consult factory. Use for door heights over 7'0" and one every 2'6" or . Use for door weight over the pivot set limit. One additional for every additional 100 pounds. Door thickness 1 3/4" mimumum with 1/8" bevel in 2".

7212-7212V-7222 INT

Use with 7212, 7212V or 7222 3/4 Offset Pivot
Handed
Vertical adjustment 3/16", include positive locking

7215-7226-7227 INT

Use with 7215, 7226 or 7227 3/4 Offset Pivot
Handed
Vertical adjustment 3/16", include positive locking

7215F-7226F-7227F INT

Use with 7215F, 7226F or 7227F 3/4 Offset Pivot
Handed
Vertical adjustment 3/16", include positive locking

7230F-7237F INT

Use with 7230F or 7237F 3/4 Offset Pivot
Handed
Vertical adjustment 3/16", include positive locking

7244F-7245F

Use with 7244F or 7245F 1-1/2" Offset Pivot
Handed
Vertical adjustment 3/16", include positive locking

Pivots
7215PT-7226PT-7227PT Power Transfer Pivot

Use with 7215, 7226 or 7227 3/4" Offset Pivots
Four wires, 28 guage
Optional 8 wire available
Rated 50 VDC or VAC @ 3.5 amps. Continuous or 16 amps pulse, maximum pulse 400 milliseconds.
Non-load bearing
Use with 1-3/4" thick door mimimum, 1/8" bevel in 2"

7253 Center Hung Pivot

Non-Handed
Top, header mount
Bottom, base plate mount
Easy installation tilt on bearing and bearing pin
Use with 1 3/4" minimum door thickness
Adjustable floor to door clearance 3/16" to 3/4"
Maximum door load 300 pounds
Vertical adjustment range 3/16", with positive locking

7255 Center Hung Pivot

Non-Handed
Top, header mount
Bottom, base plate mount
Easy installation tilt on bearing and bearing pin
Use with 1 3/4" minimum door thickness
Adjustable floor to door clearance 3/16" to 3/4", consultant factory if greater than 3/4"
Maximum door load 500 pounds
Vertical adjustment range 3/16", with positive locking

7255J Center Hung Pivot

Non-Handed
Top, header mount
Bottom, jamb mount
Easy installation tilt on bearing and bearing pin
Use with 1 3/4" minimum door thickness
Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4"
Maximum door load 500 pounds
Vertical adjustment range 3/16", with positive locking

7256 Center Hung Pivot

Non-Handed
Top, header mount
Bottom, base frame mount
Easy installation tilt on bearing and bearing pin
Use with 1 3/4" minimum door thickness
Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4"
Maximum door load 600 pounds
Vertical adjustment range 3/16", with positive locking

7259 Center Hung Pivot

Non-Handed
Top, header mount
Bottom, base frame mount
Easy installation tilt on bearing and bearing pin
Use with 2" minimum door thickness
Adjustable floor to door clearance 3/16" to 3/4", consult factory if greater than 3/4"
Maximum door load 1,000 pounds
Vertical adjustment range 3/16", with positive locking

91105F, 91105F-PT Pocket Pivot/Hinge

Non-handed
All stainless steel construction.
Allows door to open a full 90 degrees
Full mortise
90 pound load bearing
Use two for doors up to 7'0" and over 7'0" use three
PT, Power Transfer version has four 28 guage wires. Rated 50 VOC or VAC @ 3.5 amps. Continuous or 16 amps pulse. Maximum pulse 400 milliseconds.
