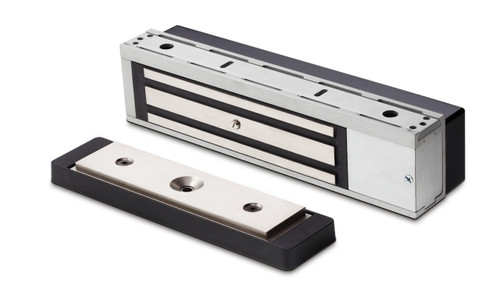

Schlage Electromagnetic Locks Maximum Security Delayed Egress on Magnatic Coil Assembly Series Double Lock Separate Housing - M492DE
Product Description
Schlage electromagnetic locks are used to secure the door in conjunction with push bars, request-to-exit devices, or credential readers for fail-safe applications when code compliance permits. You can use them on a single standalone door or as part of an access control system. Electromagnetic locks do not contain moving parts, making them extremely durable and preferred for high security applications. Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door. Electromagnetic locks are fail-safe by design. To unlock the door simply remove power.
Maximum Security
Schlage M490/M492, M490P/M492P and M390RFK magnetic locks are designed with 1500 lbs. of holding force for maximum security applications.
Specialty Applications
M490G, M490DE/M490DE-2, M490DEP/M490DEP-2, 320M and GF3000 Mortise Shear/Surface Shear magnetic locks offer unique capabilities for use in a variety of specialty applications such as outdoor gates, delayed egress, sliding doors and concealed mounting.
Schlage M490DE/M490DE-2
Designed with the customer in mind to be robust, easy to install, and secure.
Schlage M490 Series maximum security delayed egress electromagnetic locks are designed to meet the NFPA 101 Life Safety Code. They provide the same robust, easy to install security of the M400 Series locks. All four M490 delayed egress models feature 15-second delayed egress timer with audible alarm that can be triggered by an internal “plunger switch,” or by external contacts, such as a request-to-exit push bar. ""Plus"" models with P designation add intelligent sensing and reporting features needed to integrate with access control systems.
The Schlage M490DE delayed egress electromagnetic lock is designed to meet NFPA 101 Life Safety Code while providing the same robust, easy-to-install, security of our M400 Series magnetic locks. The M490DE has a 15-second delayed egress timer with audible alarm which can be configured to trigger by an internal “plunger switch,” or by external contacts, such as a request-to-exit push bar.
All M400 Series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex. M490DE models are tested and certified to meet or exceed UL special locking arrangements and BHMA 1500 lb hold force requirements.
M490DE electromagnetic locks come in four configurations to meet your specific security needs. Single and double door models are offered in standard configurations. Plus versions of these models with “P” designations add intelligent sensing and reporting features needed to integrate with access control systems.
This easy-to-install, cost effective solution provides maximum access security and safety.
M400 Features
- Auto voltage selection is standard
- Plus package (P) adds magnetic bond sensor, relocking time delay & door status monitor
- Optional mounting kits available including: top jamb mount, double and glass door
- Automatic Voltage Selection (AVS)
- Bayonet mount makes installation simpler
- New design allows for RH/LH configuration in the field
- Two singles can be combined to make a double by using connector block
- Armature mount allows armature to pivot compensating for slight opening imperfections
- Limited Lifetime Warranty
- UL1034 Burglary-Resistant Electronic Locking Mechanisms, UL10C Positive Pressure Fire Tests of Door Assemblies and ANSI/BHMA A156.23 Grade 1 certifications
- 1500 lb. hold force rating for maximum security applications
- 15 second delay - activated by internal plunger switch or auxiliary input
- LED Indication with audible alerts
- Release input, reset input, fire alarm input
- Plus models offer magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
- Automatic voltage selection (AVS)
- Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
- Armature pivot feature compensates for slight copening imperfections
- Aluminum housing in 628 satin finish
- UL special locking arrangements, UL 10C, cUL, CSFM certifications
- Meets NFPA 101 life safety code
- BOCA compliant option available
- Limited lifetime warranty on magnetic coil assembly
Additional features
All models
- Auto Voltage Selection (AVS) senses the voltage applied to lock and responds accordingly
- Internal plunger switch activates delayed egress timer
Optional accessories
- Herculite door bracket kit (HDB)
M490DEP/M490DEP-2
- Magnetic Bond Sensor (MBS) monitors the strength of the bond between the lock and armature so you know the door is secure
- Door Position Switch (DPS) monitors whether the door is open or closed
- BOCA compliant (upon request) with options for 15- or 30-second time delay
Features and benefits
- 1500 lb. hold force rating for maximum security applications
- 15 second delay – activated by internal plunger switch or auxiliary input
- LED indication with audible alerts
- Release input, reset input and fire alarm input
- Automatic voltage selection (AVS) senses the voltage applied to the lock and responds accordingly
- "Plus" models with P designation adds magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS)
- Optional mounting kit available for Herculite glass door installations
- Bayonet mounting simplifies installation by eliminating the need to hold the magnet overhead while mounting screws are installed
- Symmetrical design with field-selectable handing
- Armature mount pivot feature compensates for slight opening imperfections
- Aluminum housing in 628 satin finish
- UL10C listed for positive pressure fire tests of door assemblies: 3 hour single doors; 90 minutes pair
- CSFM and cUL certified
- Meets NFPA 101 Life Safety Code
- BOCA compliant option available on "Plus" single models
- Limited lifetime warranty on magnetic coil assembly
Specifications and certifications
Opening
- Single and double doors. Also Herculite doors (with applied kit)
Power
- Auto selected 12/24 VDC
- Current draw varies by model (see chart)
Strength
- Meets or exceeds BHMA standard of 1500 lbs.
Finish
- 628 satin aluminum
Installation Ease
- Bayonet mounting feature eliminates need to hold lock while installing mounting screws
M490DE electromagnetic lock specifications
| Specification | M490DE/M490DEP | M490DE-2/M490DEP-2 |
| Holding force | Meets or exceeds BHMA standard of 1500 lbs | Meets or exceeds BHMA standard of 1500 lbs |
| Door type | Single | Double |
| Input voltage (auto selected) | 12/24 VDC | 12/24 VDC |
| Current draw | .75A @ 12 VDC .45A @ 24 VDC | 1.25A @ 12 VDC .76A @ 24 VDC |
| Height | 3" | 3" |
| Length | 12 1 ⁄2” | 25 1 ⁄16" |
| Depth | 3 1⁄16" | 3 1⁄16" |
| Weight (approximate) | 16 lbs | 32 lbs |
| Certifications | UL special locking arrangement, UL10C, cUL, CSFM | UL special locking arrangement, UL10C, cUL, CSFM |
| Temperature | 0° to 49°C (32° to 120° F) | 0° to 49°C (32° to 120° F) |
| Wire gauge | 14-22 AWG | 14-22 AWG |
Options and ordering
| Product | How to Choose |
| M400 Series | M490: Tested and certified to meet or exceed UL1034 and BHMA 1500 lb. hold force requirements. |
| M450: Tested and certified to meet or exceed UL1034 and BHMA 1000 lb. hold force requirements | |
| M420: Tested and certified to meet or exceed UL1034 and BHMA 500 lb. hold force requirements. |
How to order
Order by model number
M490DE Single lock 15-second delay
M490DE-2 Double lock 15-second delay
Optional presets
M490DE-30S Single lock factory set 30-second delay - requires fire marshal letter of approval
"Plus" featured models:
Adds magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS) to integrate with access control systems.
M490DEP Single lock 15-second delay
M490DEP-2 Double lock 15-second delay
M490DEP-BC BOCA compliant, factory set 15-second delay with auto re-armed and locked state after door is opened and recloses
M490DEP-BC30S BOCA compliant, factory set 30-second delay with auto re-armed and locked state after door is opened and recloses - requires fire marshal letter of approval
Optional presets
M490DEP-30S Single lock factory set 30-second delay - requires fire marshal letter of approval
Accessories
HDB490 single Herculite door bracket kit
HDB490-2 double Herculite door bracket kit
Filler Plates and Angle Brackets
For complete list and part numbers, please reference M490DE data sheet.
| Product | How to Choose |
| M400 Series | M490: Tested and certified to meet or exceed UL1034 and BHMA 1500 lb. hold force requirements. |
| M450: Tested and certified to meet or exceed UL1034 and BHMA 1000 lb. hold force requirements | |
| M420: Tested and certified to meet or exceed UL1034 and BHMA 500 lb. hold force requirements. | |
| 40/70 Series | 40 Series: Designed for retrofit applications. The 40 series has a BHMA Grade 1 Certified 500 lb. rating |
| 70 Series: Designed for retrofit applications. The 70 series has a BHMA Grade 1000 lb. rating. | |
| M390RFK | M390RFK: Designed to retrofit the Locknetics 390+ without any additional prep. ANSI/BHMA A156.23 Grade 1 with 1500 lbs. direct holding force |
| Specialty Locks | M490G: Gate lock designed for use with all types of sliding and swinging gates. Tested and certified to meet or exceed UL1034 and BHMA 1500 lb. hold force requirements. |
| M490DE: Designed to meet NFPA 101 Life Safety Code. Features a 15 second delayed egress timer with audible alarm. Tested and certified to meet or exceed UL1034 and BHMA 1500 lb. hold force requirements. | |
| GF3000: This electromagnetic shear lock available in mortise and surface mount features a totally concealed locking mechanism for superior security and appearance. Provides up to 3000 lbs. of holding force. | |
| 320M: This electromagnetic mortise mount Mini-Line locks is designed to interface with electronic access control systems and fire or hazard sensing systems. For use with sliding doors. |
