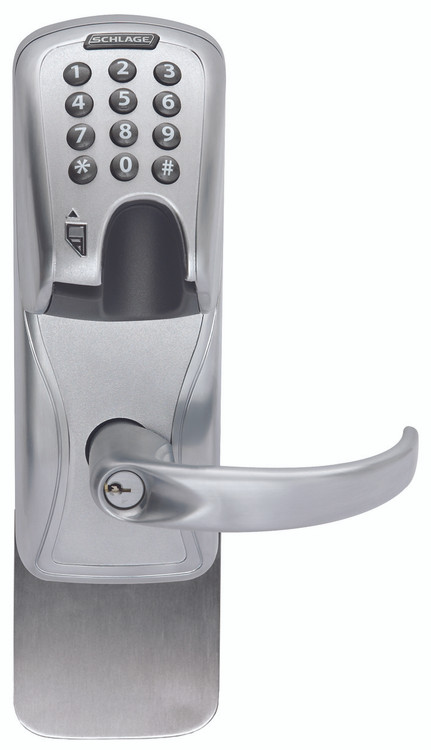

Schlage Electronic CO 250 Series Rights on Card Standalone Offline Locks Exit Trim - Mortise
Product Description
CO-Series Standalone Locks
CO-Series standalone locks are a cost effective solution that provides a variety of factory orderable options.
The CO-Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.
Schlage CO-250
Enables unlimited users with up to 4000 audits. User rights stored on the credential. Reader options are magnetic stripe with or without keypad.
The CO Series is an ideal solution for electronic security at an entry price point without the complexity of a networked system.
The CO-250 is a computer-programmable offline lock that stores user rights on the magnetic stripe credential and captures an audit trail in the lock. This dynamic rights management means there is no door visitation necessary to change user access rights. This makes it a cost effective solution for offline environments with a large number of users. Mechanical key override is standard and compatible with multiple cylinder types. The entire CO Series is also compatible with many popular brands of exit devices.
The CO-Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.
The CO-250 is a computer programmable offline lock that stores user rights on the magnetic stripe credential, and captures an audit trail in the lock. The CO-250 provides dynamic rights management, meaning you do not have to visit the door to change user access rights. This makes it a cost effective solution for offline environments with a large number of users. The CO-250 also allows you to retrieve audits by using the Handheld Device (HHD) in conjunction with your access control software.
The CO-250 from Schlage offers you many choices. Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware.
Mechanical key override is standard and compatible with multiple cylinder types. The CO-Series is also compatible with many popular brands of exit devices.
The CO-Series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO-Series is ANSI/BHMA 156.25 Grade 1 certified and UL 294 listed.
The CO-250 from Schlage offers you many choices. Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware.
Features and benefits
- Computer programmable with audit trail
- Unlimited number of users and up to 4000 audits*
- Available with Magnetic Stripe and Magnetic Stripe plus Keypad
- Up to 32 holidays & 16 time zones*
- ANSI/BHMA Grade 1 certified and UL 294 listed
- User rights stored on the magnetic stripe credential
- The ability to easily add and delete users
- Available in cylindrical, mortise, mortise deadbolt, and exit trim
- Compatible with major brands of key systems and exit devices
- Classroom/Storeroom, Office, and Privacy functions available
- Affordable, standalone commercial interior or perimeter use electronic lock
- Computer programmable
- Add or delete users without visiting lock - user rights are stored on magnetic swipe credentials
- Uses a Handheld device with Schlage Utility Software or compatible access control software
- Unlimited number of users* with audit trail of up to 4000 events*
- Up to 32 holidays and 16 time zones* enables auto lock and unlock during specified periods
- Enables magnetic stripe or combination 3-6 digit PIN code plus magnetic stripe credential use
- Classroom/storeroom, office, and privacyfunctions available
- Chassis options include cylindrical, mortise, mortisedeadbolt and exit trim
- Compatible with most major brands of key systems and exit devices
- Battery status indicator
- Up to 2 years of battery life with 4 AA batteries
- Tri-colored LED and audible indications communicate lock status
Functions
- Classroom/Storeroom
- Office
- Privacy
Readers
- Magnetic Stripe (Swipe) (MS)
- Magnetic Stripe (Swipe) + Keypad (MSK)
Standard status signals
- Mechanical key override
- Battery status - indicated by blinking lights
- Access granted/access denied
- Programming commands
Electronic specifications and certifications
For full electronic specifications please reference data sheet.
User verification*
- Unlimited number users with verification time of ≤ 1 second
- Up to 4000 audits
Visual/audible communications
- Tri-colored LED’s and audible indicators aide programming and entry functions
- Battery status indicated by blinking lights
System interface
- Handheld device accessory (HHD) transfers programming information to lock via USB cable
Functions
- 70-classroom/storeroom
- 50-office
- 40-privacy
Certifications
- ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
*Depending on access control software capability
Mechanical specifications and certifications
For full mechanical specifications please reference data sheet.
Chassis
- Cylindrical, mortise or exit trim
Exit device compatibility
- Please reference CO Series exit trim compatibility data sheet (004183)
Cylinder and keys
- Standard: Schlage 6-pin Everest 29™ S123 keyway cylinder with two patented keys
- Master keying and grand master keying options
Certifications (meets or exceeds)
- Cylindrical: ANSI/BHMA A156.25 and ANSI/BHMA A156.2, Series 4000, Grade 1
- Mortise: ANSI/BHMA A156.25 and ANSI/BHMA A156.13, Series 1000, Grade 1
- Exit trim: ANSI/BHMA A156.25 and ANSI/BHMA A156.3
Reader option specifications
For full reader specifications and credential options please reference data sheet.
Certifications and standards
- Magnetic stripe: ABA, ISO76XX standard high and low coercivity
- Industry Canada (IC), UL 294 listed
Available Accessories
CO-Series standalone electronic locks
•Grant user rights to designated doors at specific times
•Audit trails give you visibility to who went where and when
•Electronic credentials can be easily added or deleted
•Automatic lock and unlock can be scheduled for specific time zones
•Holiday Schedules
•Multiple ways to utilize credentials including normal, toggle, freeze & pass through
•Utilize existing master key system
•Low lifetime cost of ownership
•Easy to install and service in the field
Three models of CO-Series locks are available to address the unique needs of each facility. In order to determine which solution is best for your facility you should consider a variety of factors including:
| Credential Type | |||
| Pin Only | x | x | |
| Proximity Card Only | x | x | |
| Proximity Card + Pin | x | x | |
| User Rights Stored | |||
| On the Lock | x | x | |
| On the Magnetic Stripe Card | x | ||
| Programming Method | |||
| Manual Programming | x | x | |
| Computer Programming | x | x | |
| Capacity | |||
| Number of Users | 500 | 2000* | Unlimited* |
| Audit Trail | 2000* | 4000* | |
Schlage AD-Series and CO-Series are the first electronic locks to achieve UL 294 certification which is the standard for safety of access control units. Both models feature a robust integrated design which incorporates many of the components typically found around the door including the lockset, credential reader and door position switch. They also offer a choice of chassis, credential reader, lever and finish options to meet the needs of a variety of applications and facilities.
Need help deciding between the AD-Series and CO-Series? The AD-Series is the ideal solution if you want flexibility. The modular design of the AD-Series allows you to upgrade from standalone to networked if your needs change in the future. The AD-Series also allows you to upgrade credential readers without taking the lock off the door. The CO-Series is preferable if you do not expect your needs to change. CO-Series options are factory orderable rather than upgradable like the AD-Series.
| Credential Type | |||||
| Pin Only | x | x | x | ||
| Multi-Tech Only (Proximity & Smart) | x | ||||
| Multi-Tech+ Pin (Proximity & Smart) | x | ||||
| Magnetic Stripe Only | x | x | x | x | |
| Magnetic Stripe + Pin | x | x | x | x | |
| User Rights Stored | |||||
| On the Lock | x | x | x | ||
| On the Magnetic Stripe Card | x | x | |||
| Programming Method | |||||
| Manual Programming | x | x | x | ||
| Computer Programming | x | x | x | x | |
| Capacity | |||||
| Number of Users | 5000* | Unlimited* | 500 | 2000* | Unlimited* |
| Audit Trail | 5000* | 10000* | 2000* | 4000* | |
