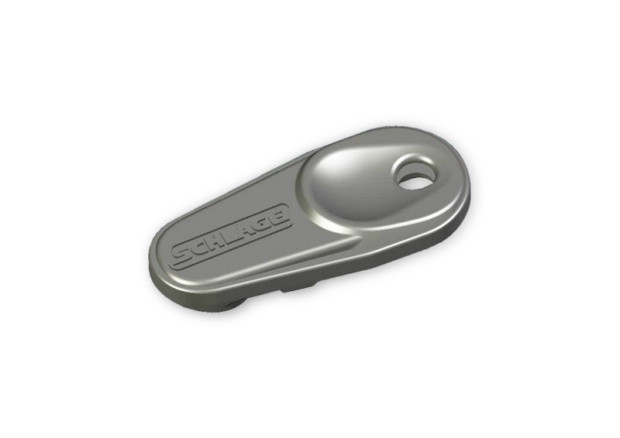

- Schlage iButton Credentials iButton on Fob - Black IBF
)
Product Description
Schlage Proximity and Smart Keyfobs with iButton® Option
Versatile contactless keyfobs offer iButton function
Contactless keyfobs by Schlage® provide the convenience of 125 kHz proximity and 13.56 MHz smart technologies in a form that may optionally include an iButton®credential. This durable combination works well in environments that do not require photo ID badging.
In addition, contactless keyfobs provide a versatile option for organizations that have integrated multiple credential technologies into their facilities.
MIFARE® Classic or MIFARE DESFire™ EV1 smart technology deliver safe access to transit, cashless vending, cafeteria point-of-sale and other transactions and applications.
The combination of either smart card technology or proximity technology with an iButton® provides the ideal dual credential for organizations that have integrated multiple credential technologies into their facilities. The iButton® provides a registration number used for access control in legacy systems, and the proximity or smart card technology enables future expansion with more advanced credentials.
The proximity keyfob incorporates the convenience of proximity technology with the iButton®. The smart keyfob can support diverse applications such as access control, biometrics, cashless vending, transit applications, and many more.
Features and benefits
- Combines 125 kHz proximity and 13.56 smart technologies with iButton capability in one keyfob
- Keyfob’s durability works well for applications that do not require photo ID badging
- Supports a variety of applications beyond access control including biometrics, cashless vending and transit
Smart keyfob features 13.56 MHz frequency smart technology
- Available with two memory and technology configurations
- 1K bit (8K byte) MIFARE® or a 4K bit (32K byte) MIFARE DESFire™ EV11
- Data transfer rates of up to 848 kbps
Proximity keyfob features
- 125 kHz proximity technology
- Durable stainless-steel packaging
- Unique factory programmed 64-bit registration number
- Momentary contact initiates identification
- Data transfer rate of up to 16.3 kbps
Options
• Available with 1K bit (8K byte) MIFARE®
• Data transfer rates of up to 848 kbps
• Unique factory programmed 64-bit registration number
• Momentary contact initiates identification
• Data transfer rate of up to 16.3kbps
Keyfob specifications
- Dimensions (at widest point) 2.24" x 1" x 0.60" (5.7 cm x 2.52 cm x 1.48 cm)
- Weight 0.20 oz. (5.6 g)
- Maximum read range1 Up to 4"
- AD Series MT reader module up to 0.75"
- AD Series MTK reader module up to 0.75"
- Frequency 125 KHz or 13.56 MHz (see below for part numbers)
- Operating temperature -50° to 160° F (-45° to 70° C)
- Material Polycarbonate
- Color Gray
