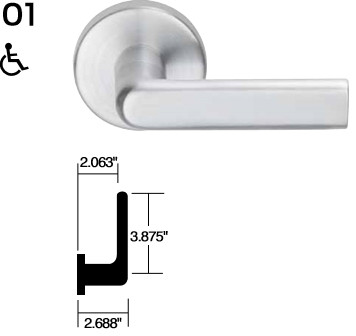

Schlage L Series L9000 Grade 1 Mortise Locks - Standard Collection Lever 01

Mortise locks are considered even more secure than cylindrical locks. They require a pocket to be cut into the door and consist of a lever mechanism. They are stronger and more heavy duty than cylindrical locks, making them ideal for use in hospitals and schools. Additionally, mortise locks are heavy enough to support ornate and solid cast knobs and levers. They accept a wide variety of cylinders and accessories, allowing for architectural conformity with locks and door hardware already on site.

 Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

Door Thickness:

1 3/4” (44 mm) standard. 1 3/8” (35 mm) to 2 1/2” (64 mm) optional. Over 2 1/2” (64 mm) door ranges vary by function. No escutcheon available for 1 3/4” (44 mm) doors standard. 2” to 2 3/8” (51 mm to 60 mm) optional. Specify door thickness if other than 1 3/4”.

Backset:
2-3/4” (70 mm) only.

Armored Front:
L9000 Series: 1 1/4” x 8” x 7/32” (32 mm x 203 mm x 6 mm) standard. 1 1/16” x 8” x 1 7/32” (27 mm x 203 mm x 6 mm) optional.
Case Size:

L9000 Series: 4 7/16” x 6 1/16” x 1” (113 mm x 154 mm x 25 mm)

Spacing:

Knob or lever to cylinder, 3 7/8” (98mm); knob or lever to thumbturn hub, 2 11/16” (68mm).

Bolts:
1” (25mm) throw stainless steel deadbolt and 3/4” (19mm) throw stainless steel latch with anti-friction tongue.

Levers:
Forged brass or bronze and cast stainless steel. Designs available to match D-Series levers. 93 Lever Design: Extruded brass, bronze or stainless steel.
Escutcheons:
Strike:
L9000 Series: ANSI curved lip strike 1 1/4” x 4 7/8” (32 mm x 124 mm) x 1 3/16” (30 mm) lip to center with dust box standard. L400-Series: 1 1/8” x 3 5/8” (29 mm x 92 mm) with dust box.
Cylinder & Keys:
6-pin Everest C123 keyway cylinder with two patented keys standard.
Certifications

ANSI:
L9000: ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9007). With interchangeable core cylinders: Grade 2 Security.
With Concealed Shell Cylinder:
A156.13 Grade 1 Operational and Security. ANSI/ASTM F476-76 Grade 40, UL Listed. L400: ANSI A156.5 Grade 1
