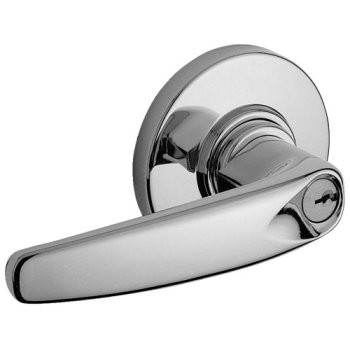

Schlage ND series Athens Lever

The new ND-Locks are designed for commercial, institutional and industrial use in facilities such as schools, hospitals and factories where a long life of dependable operation must be combined with a high degree of resistance to physical abuse.

Office function lock.

• Certifications: ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.Keying: 6-Pin Everest C123 keyway standard with two patented nickel silver keys per lock.
• Door Range: 1 3/8" - 2 1/8" (35 mm - 54 mm) standard.
• Backset: 2 ¾" is standard. 2 3/8", 3 ¾", and 5"  backset latches available, please call.
• Exposed Trim: Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.
• Code Compliance - meets ADA and fire life and safety codes.
• Latch Bolt: Steel, ½" (12 mm) throw, deadlocking on keyed and exterior functions. ¾" (19 mm) throw anti-friction latch available for pairs of fire doors.
• Strikes: ANSI curved lip strike 1 ¼" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.
