Schlage Remote Local Monitoring Station - one LED indicator - red, green or amber - 800L1

Product Description

System Components

Everything you need to complete your access control system including power supplies, electric strikes, electromagnetic locks and more.

System Accessories

Allegion offers a variety of system accessories that allow you to customize an opening to meet specific security and safety concerns. We offer a full line of products that include: pushbuttons, key switches, request to exit bars, monitoring stations & consoles, exit sensors, electric horns and more. Our products easily integrate together to help reduce the complexity of securing a facility.

Allegion’s varied portfolio of system accessories permits the customization of any opening to meet specific security and safety concerns. Schlage system accessories include a variety of devices that easily integrate with most existing security systems to enable specific functionality whether in standalone applications or as part of networked access control systems. Allegion’s broad accessories offering includes pushbuttons, key switches, request to exit devices, monitoring stations & consoles, exit sensors, electric horns and more; all of which help to reduce the complexity of securing a facility.

Monitoring stations

800 Series Local and remote monitoring station

The 800 Series monitoring stations can provide monitoring for a single zone with up to 2 LED indicators.

801 Series Local and remote monitoring station

The 801 unit includes an audible and visual indication of lock status and delay activation. Interfaces with electromagnetic locks with magnetic bond sensor (MBS) option. Unit mounts in a standard single gang electrical box.

The 801-KS fulfills a code requirement stating that a local signal assures users that a delayed egress system is functional. The unit includes an audible and visual indication of lock status and delay activation. Provides a Single Pole, Double Throw (SPDT) momentary x SPDT maintained contact arrangement keyswitch for legal release and reset of the system, which interfaces with a standard 1 1⁄4" mortise cylinder with standard straight cam. Interfaces with electromagnetic locks with Magnetic Bond Sensor (MBS) option. Unit mounts in a standard double gang electrical box.

Schlage™ 800/801 Series local monitoring stations provide the ability to monitor a single zone, while 8200 Series monitoring consoles offer door control and monitoring of up to eight zones.

Several consoles and monitoring stations are available to provide door control and monitoring.

The 8200 Series consoles provide door control and monitoring for up to eight zones. The 8204 is used for one to four zones and the 8208 for one to eight zones.

The 800 Series monitoring stations can provide monitoring for a single zone with up to 2 LED indicators. The 801 unit includes an audible and visual indication of lock status and delay activation.

Von Duprin & LCN offer a full portfolio of products that complement our system accessories offering.

•Von Duprin: Exit devices and outside trim operations, electric strikes, monitor strikes & power transfers

•LCN: Heavy duty door closers, auto operators, magnets & accessories

Features and benefits

800/801 Series remote and local monitoring stations
800 series

Monitoring for single zone
Up to 2 LED indicators

801 Series

Includes audible and visual indicator of lock status and delay activation
Provides Single Pole, Double Throw (SPDT) momentary x SPDT maintained contact arrangement keyswitch for legal release and reset of the system
Interfaces with electromagnetic locks with magnetic bond sensor (MBS) option
Mounts in standard single gang electrical box
801-KS option fulfills code requirement stating that a local signal assures users that a delayed egress system is functional
800 Series local and remote monitoring station − Up to 2 LED indicators
801 Series local and remote monitoring stations

801-KS option

8200 Series Consoles

Door control and monitoring for up to eight zones
Controls and monitors electric strikes, electromagnetic locks, electromechanical exit devices and electronic locks
Can be used for surveillance of monitoring devices
Slope front design, with anodized face plate and durable housing
Provides maintained or momentary Single Pole, Double Throw (SPDT) pushbutton switch
Red and green indicator lamps
Includes security keyswitch, signaling horn, alarm reset button

800 specifications

Operating power 12/24 VDC
LED Operating power 6-28 VDC
LED current draw 30 mA ea.
Audible input 10-28 VDC
Audible current draw 3-14 mA
Decibel rating 80 dB @ 2 ft
Single gang unit Length 2 3⁄4"
Width 1 1⁄2"
Height 4 1⁄2"
Finish Stainless steel

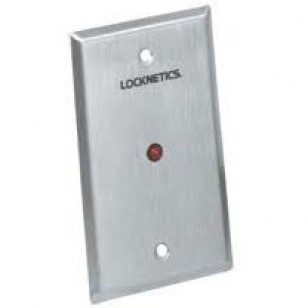

800L1 One (1) LED Indicator - red, green, and amber
800L2 Two (2) LED Indicators - red, green, and amber
800A Audible sounder

801 specifications Operating power 12/24 VDC

LED operating power 6-28 VDC
LED current draw 30 mA ea.
Audible input 10-28 VDC
Audible current draw 3-14 mA
Decibel rating: 80 dB @ 2 ft
Single gang unit 801* Local or remote monitoring system Length 2 3⁄4"
Width 1 1⁄2"
Height 4 1⁄2"
Finish Stainless steel
Double gang unit 801-KS* local or remote monitoring system with keyswitch (less cylinder) Length 4 9⁄16"
Width 1 15⁄16"
Height 4 1⁄2"
Finish Stainless steel
Keyswitch contacts 5A/250 VAC

*Note: 801/801-KS requires MBS on locking device.

	Product	How to Choose
	Monitoring Stations	800 Series Monitoring Stations: A remote and local monitoring station that provides monitoring for a single zone with up to 2 LED indicators.
	Monitoring Stations	8200 Series Consoles: A monitoring console that provides door control and monitoring for up to eight zones
