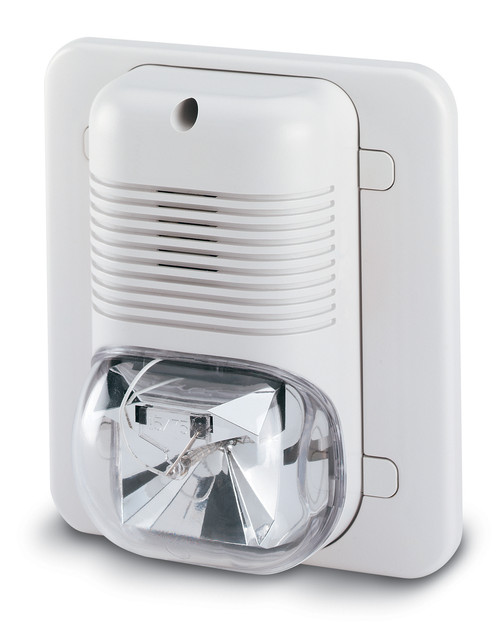

Schlage System Accessories Electronic Horns 24 VDC Horn with strobe & latching, current draw 71mA - L1910S-1

Product Description

System Components

Everything you need to complete your access control system including power supplies, electric strikes, electromagnetic locks and more.

System Accessories

Allegion offers a variety of system accessories that allow you to customize an opening to meet specific security and safety concerns. We offer a full line of products that include: pushbuttons, key switches, request to exit bars, monitoring stations & consoles, exit sensors, electric horns and more. Our products easily integrate together to help reduce the complexity of securing a facility

Allegion’s varied portfolio of system accessories permits the customization of any opening to meet specific security and safety concerns. Schlage system accessories include a variety of devices that easily integrate with most existing security systems to enable specific functionality whether in standalone applications or as part of networked access control systems. Allegion’s broad accessories offering includes pushbuttons, key switches, request to exit devices, monitoring stations & consoles, exit sensors, electric horns and more; all of which help to reduce the complexity of securing a facility.

Electric Horns

Electric horns are designed for use as an immediate local audible warning device incorporated in a security system. 1910 Selica Horns have eight combinations of volume, tone, and code that are easily user configurable. Strobe and latching combinations are also available.

Units are flush and surface mountable using a standard one or two gang electrical box. Surface and flush mounting kits are included with all horns.

Features and Benefits

All horns are off white in color and come with a skirt for a clean finish
Designed for indoor use only
Available in four models: − 1910-1 horn 12/24 VDC − 1910S-1 horn with strobe 24 VDC − L1910-1 horn with latching 24 VDC − L1910S-1 horn with strobe and latching 24 VDC
Current draw: − Less than 14 mA @ 12 V − Less than 28 mA @ 24 V − Less than 71 mA @ 24 V, with strobe
Operating temperature: 32°F to 120°F
Anechoic room @30 V 102 dba
UL reverbrant room @30 V 88 dba

Ordering information

1910-1 - 12/24 VDC horn
1910S-1 - 24 VDC horn with strobe
L1910-1 - 24 VDC horn with latching
L1910S-1 - 24 VDC horn with strobe and latching

Other Accessories

Schlage offers a variety of additional system components to help you customize and complete your access control system.

Electrified Deadbolts: Fail safe or fail secure electrified deadbolts are available with an operational time delay and built in relocking option.

Electric Horns: A variety of electric horns are available for use as an immediate local audible warning device incorporated in a security system.

Door Position Switches: Door position switches of many shapes and sizes are available to detect the open or closed status of an opening and then send this status to a control panel.

Armored Door Cords: Used when installing electric exit devices or electric locks, armored door cords provide a simple and economical solution for transferring power from frame to door.

Von Duprin & LCN offer a full portfolio of products that complement our system accessories offering.

•Von Duprin: Exit devices and outside trim operations, electric strikes, monitor strikes & power transfers

•LCN: Heavy duty door closers, auto operators, magnets & accessories

Features and benefits

PB405/PB405S Electrified deadbolts

Mortise, right angle
Available fail-safe (PB405) or fail-secure (PB405S)
12/24 VDC
Built-in relocking option

Electronic horns

Eight combinations of volume, tone and code that are easily configurable
Strobe and latching combinations available
Horns are white in color and come with skirt for clean finish
Units are flush and surface mountable using standard one or two gang electrical box
Surface and flush mounting kits included with all horns

Door position switches

Detect open or closed status of opening and send status to control panel
Variety of shapes and sizes
Designed to monitor door positions, roof hatches, gates, etc.

Armored door cords

Simple and economical solution for transferring power from frame to door
Used in conjunction with electronic exit devices or electronic locks

Cabinet locks

Compact, easy-to-install hardwired cabinet lock
Fail-secure power failure mode
Driven by dual voltage solenoid
Field-selectable 12/24 VDC voltage
Open architecture design, compatible with wide range of access control providers
Flexible mounting options
Ideal for pharmaceutical cabinets, cash drawers and display cases

Options and ordering

PB405/PB405S Electrified deadbolts

405 – Rectangular front, fail-safe
405S – Rectangular front, fail-secure

*Fail-secure lock requires power to unlock; fail-safe lock requires power to lock

1910 Series electronic horns

1910-1 – 12/24 VDC horn
1910S-1 – 24 VDC horn with strobe
L1910-1 – 24 VDC horn with latching
L1910S-1 – 24 VDC horn with strobe and latching

679 Series door position switches

674- OH – Overhead door floor mount
679-05 – Wood door and frame
679-05HM – Hollow metal door and frame
679-05WD – Wood door and metal frame
7764 – Concealed/flush mount
7766 – Surface mount

788/798 Series armored door cords

Acceptable wire size combinations

Five 18 gauge
Two 18 gauge and four 20 gauge
Two 18 gauge and seven 22 gauge
Seven 20 gauge
Twelve 22 gauge

5/16” Interior diameter; 3/8” outside diameter flexible door cord

788-12 – 12” x 3/8” less wires (inswinging)
788C-12 - 12” x 3/8” with 20” 4-conductor wire, 20 gauge wire
788-18 – 18” x 3/8” less wires (outswinging)
788C-18 - 18” x 3/8” with 26” 4-conductor wire, 20 gauge wire

3/8” Interior diameter; 1/2” outside diameter flexible door cord

798-12 – 12” x 1/2” less wires (inswinging)
798C-12 - 12” x 1/2” with 20” 4-conductor wire, 20 gauge wire
798-18 – 18” x 1/2” less wires (outswinging)
798C-18 - 18” x 1/2” with 26” 4-conductor wire, 20 gauge wire

	Product	How to Choose
	Other Accessories	PB405/PB405S Electrified Deadbolts: Electrified deadbolt with a mortise, right angle deadbolt with a .61” and a .67” throw. Available in fail safe(PB405) or fail secure(PB405S).
		1910 Series Electronic Horn: Designed for use as an immediate local audible warning device incorporated into a security system.
		679 Series Door Position Switch: Door position switch used to detect the open or closed status of an opening and send the status to a control panel.
		788 / 798 Series Armored Door Cord: Provides a simple and economical solution for transferring power from frame to door.
